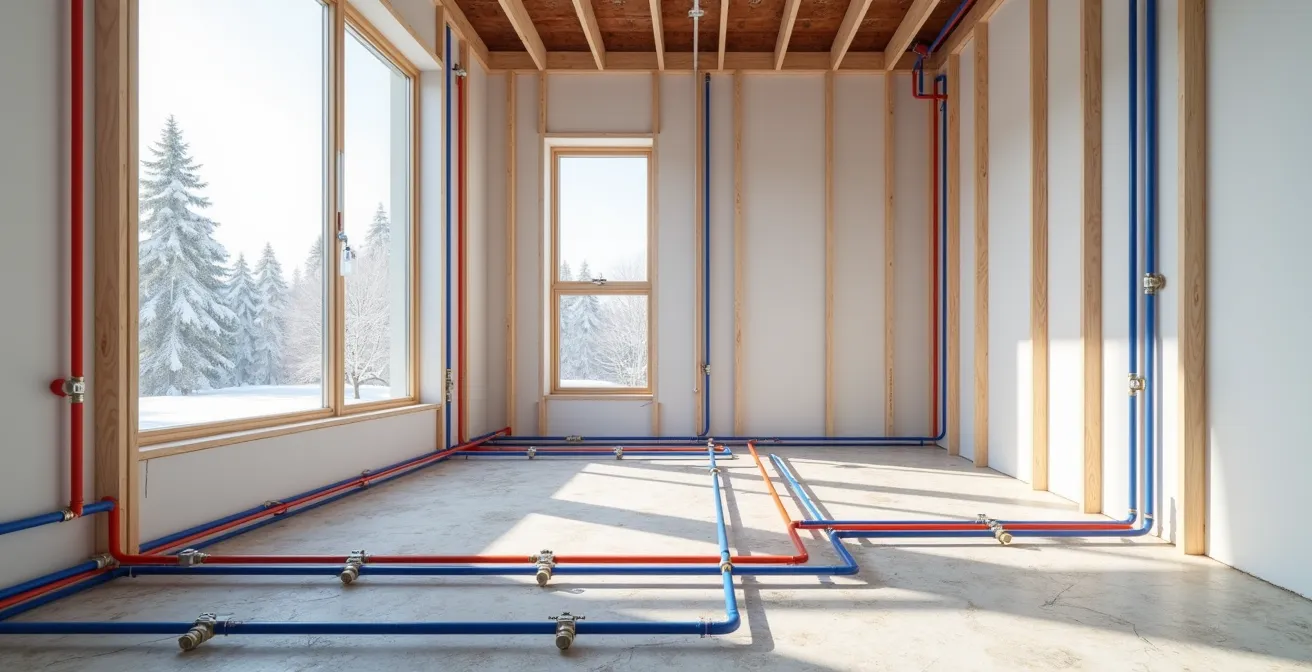

How to Design a Plumbing System for a Custom Luxury Home?

For architects and owner-builders embarking on a custom luxury residence in Montreal, the allure of spa-like bathrooms with multiple rain showers, body jets, and steam generators is a primary driver of design. The common approach is to select these high-end fixtures and assume standard plumbing practices will suffice. However, this assumption often leads to disappointing performance: weak showers, fluctuating temperatures, and noisy drains—symptoms of a system fundamentally mismatched to its demands. The North American market for luxury fixtures is booming, projected to grow from $29.15 billion in 2024 with a 7.7% CAGR through 2030, yet the engineering principles required to support these fixtures are frequently overlooked.

The conversation must shift from aesthetics to hydraulics. A high-performance plumbing system in a climate like Quebec’s is an integrated network that accounts for dynamic pressure, thermal integrity, and acoustic control. It involves a deeper understanding that goes beyond simply insulating pipes. It requires a strategy for grouping wet zones, managing pressure fluctuations across multiple floors, and guaranteeing instantaneous hot water, even in a penthouse suite during a polar vortex. While Montreal’s municipal water is relatively soft, any whole-home filtration or conditioning equipment introduces another point of pressure drop that must be factored into the equation.

This guide abandons the platitudes. Instead, it provides a high-level, engineering-focused framework for designing a plumbing system that performs flawlessly. We will dissect the critical mistakes made in luxury builds and provide the technical solutions, from calculating true hydraulic load to zoning pressure in high-rises and selecting materials for acoustic dampening. This is not just about meeting the Quebec Construction Code; it’s about exceeding it to deliver an experience worthy of the investment.

To navigate these complex technical considerations, this article is structured to address the most critical engineering decisions you will face. The following summary outlines the key areas we will explore, providing a roadmap for designing a robust and reliable luxury plumbing system.

Why Standard Pipe Sizes Fail in Houses with Rain Showers?

The primary failure point in luxury plumbing is underestimating the hydraulic load. A standard home is designed for intermittent, single-fixture use. A luxury bathroom, however, often operates like a commercial spa, with multiple high-flow devices running simultaneously. A single 12-inch rain shower head can demand 5-10 gallons per minute (GPM), and when combined with four body jets and a steam generator, the peak demand can easily exceed 20 GPM. A standard 1/2-inch or 3/4-inch supply line simply cannot deliver this volume without a severe drop in dynamic pressure, resulting in a weak, unsatisfying experience.

The solution lies in a design process based on Fixture Units (FU), a value assigned to each fixture to quantify its demand on the system. Proper design involves summing the FU values for all fixtures that could operate at once and sizing the main trunk and branch lines accordingly. For example, under Chapter III of the Quebec Construction Code, a luxury master bathroom could easily total 24 FU or more. This hydraulic load, combined with pressure losses from water heaters and treatment systems (typically 5-10 PSI), often necessitates 1-inch or even 1 1/4-inch main supply lines to maintain adequate pressure at the fixture head.

Furthermore, design must be contextualized to the specific municipality. For instance, a home in Westmount with an average municipal supply of 40-45 PSI has far less margin for error than a home in Brossard, where pressures can be 55-60 PSI. Relying on static pressure readings is a common mistake; true performance is dictated by dynamic pressure—the pressure available when water is flowing. Calculating this requires accounting for friction loss in every pipe, fitting, and valve from the street to the showerhead.

How to Group Wet Zones to Minimize Pipe Length and Heat Loss?

An efficient plumbing layout in a luxury Montreal home is dictated by two principles: hydraulic performance and thermal protection. Grouping “wet zones”—such as stacking a master bathroom over a kitchen or laundry room—creates a compact, vertical plumbing core. This design strategy is not merely for convenience; it is a critical engineering choice that minimizes the total length of horizontal pipe runs. Shorter runs reduce both the cost of materials (especially for larger-diameter pipes) and, more importantly, the potential for heat loss in hot water lines.

In a Quebec winter, heat loss is not just an efficiency issue; it is a catastrophic failure risk. Any plumbing that runs through unconditioned or under-insulated spaces, such as cantilevered floors, crawlspaces, or exterior walls, is vulnerable to freezing. The goal is to keep every single supply and drain pipe strictly within the building’s thermal envelope. This means that architectural features must be designed in concert with the plumbing layout from day one.

This disciplined approach results in a more responsive hot water system, lower energy bills, and dramatically reduced risk of freeze-related disasters. It requires collaboration between the architect and the plumbing designer at the earliest conceptual stages.

Cast Iron or Insulated Plastic: Which Drops Drop Noise Best?

In a luxury home, quality is perceived not only by what is seen but also by what is not heard. The sound of water rushing through drain, waste, and vent (DWV) pipes is a common complaint that undermines the sense of tranquility. The choice of DWV piping material is the single most important factor in acoustic management. The two primary contenders are traditional cast iron and modern insulated plastic (like PVC or ABS).

Cast iron is the undisputed champion of sound dampening. Its sheer mass and density are inherently effective at absorbing the vibration and noise generated by turbulent water flow. When water cascades down a vertical stack, cast iron’s properties prevent the sound from radiating into adjacent living spaces. For main vertical stacks that run near bedrooms, home offices, or dining rooms, cast iron is the premium, no-compromise solution for a silent system.

Modern plastics like ABS and PVC are lighter, cheaper, and faster to install, but they are poor acoustic performers. The thin, rigid walls of plastic pipe act like a drum, easily transmitting noise. However, significant advancements have been made to mitigate this. Using “no-hub” mechanical couplings instead of solvent-welded joints can reduce some vibration transfer. More effectively, wrapping the plastic pipes in specialized, high-density acoustic insulation can reduce noise transmission by up to 50%. There are also proprietary quiet piping systems on the market that use a mineral-filled plastic for increased mass.

When you pull the plug on a bathtub, you’ve got 40 gallons of water that wants to scream down that pipe. If there’s a vacuum, it can pull the water out of all the traps in the house.

– Richard Trethewey, This Old House plumbing expert

A hybrid approach is often the most cost-effective strategy: use cast iron for all main vertical stacks and any horizontal runs located in floor/ceiling assemblies above quiet spaces. Then, use insulated plastic for less critical branch lines and venting systems where noise is not a primary concern.

The Mistake of Undersizing Vents That Drains Traps Dry

A properly functioning drain system relies on a silent partner: the vent system. Every time water flows down a drain, it pushes air ahead of it and pulls air behind it, creating positive and negative pressure. The vent system’s job is to equalize this pressure, allowing water to flow freely and, most critically, protecting the water seals in P-traps. An undersized or blocked vent system can create a powerful siphon effect, pulling the water right out of a fixture’s trap. This breaks the sanitary seal, allowing unpleasant and unhealthy sewer gas to enter the home.

In Montreal, the primary threat to vent systems is frost closure. During sustained periods of sub-zero temperatures, the warm, moist air rising from the DWV system can freeze as it exits the vent pipe on the roof, gradually building up a layer of ice that can completely seal the opening. Standard 1.5-inch or 2-inch vents are highly susceptible to this. When the vent is blocked, the drain system can no longer breathe, leading to gurgling drains, slow drainage, and siphoned traps.

Undersizing a vent stack is a critical engineering mistake driven by a failure to account for local climate conditions. It’s a cost-saving measure that invariably leads to system failure and costly callbacks.

When to Perform the Air Test During Construction Phases?

A plumbing system is only as good as its connections. In a custom home with hundreds of joints hidden behind finished walls and ceilings, a single, minuscule leak can go undetected for months, leading to catastrophic mould, rot, and structural damage. The financial impact is significant; reports show that the cost of post-construction repairs due to water damage far exceeds the cost of proper testing, and there has been a 21% year-over-year increase in luxury bathroom renovations, many of which are driven by failures in the original installation. The only way to guarantee the integrity of the Drain-Waste-Vent (DWV) system is with a pressure test, performed at a specific and non-negotiable point in the construction schedule.

The test must occur *after* all DWV piping is installed and permanently connected, but *before* any insulation or drywall is installed. This timing is critical. It allows for complete visual and physical access to every single joint in the system. Trying to test a system after insulation is installed is useless, as the insulation can absorb small amounts of water or muffle the sound of an air leak, masking the problem until it’s too late.

The standard procedure in Quebec is an air test. The entire DWV system is sealed, and an air compressor is used to pressurize it to 5 PSI. This pressure must hold steady for a minimum of 15 minutes without any drop. If the pressure drops, it indicates a leak. The crew must then meticulously inspect every joint—typically using a soap and water solution that will bubble at the point of the leak—until the fault is found and repaired. The test is then repeated until the system is proven to be 100% airtight. This is a mandatory inspection point for municipal inspectors.

Only after the successful and documented completion of both the DWV air test and the supply line water test—and sign-off from the municipal inspector—should the general contractor be permitted to proceed with insulation and drywall. Skipping or rushing this step is the definition of professional negligence.

Booster Pump or Pressure Tank: Which Solves Low Flow Issues Best?

Even with perfectly sized pipes, a luxury home’s plumbing system can be crippled by inadequate or fluctuating municipal water pressure. This is a common issue in certain Montreal boroughs. The solution is to take control of the home’s internal pressure with either a booster pump, a pressure tank, or a combination of both. The best choice depends entirely on the nature of the pressure problem.

A pressure tank is a simple, effective solution for buffering against pressure fluctuations. It contains a bladder that holds a reserve of pressurized water. When a tap is opened, this water is discharged first, smoothing out the sudden drops that can occur in the municipal supply. It’s an excellent choice for areas like Notre-Dame-de-Grâce (NDG), which can experience variable pressure. However, a tank alone cannot *create* pressure; it can only stabilize what’s already there. If the incoming pressure is consistently low (e.g., 40 PSI in parts of the West Island), a tank will be insufficient.

A constant pressure booster pump is the solution for chronically low municipal supply. This device actively increases the pressure to a set point. Modern pumps use a Variable Frequency Drive (VFD), which allows the motor to ramp up or down based on real-time demand. This is far more efficient and quieter than a single-speed pump that slams on and off, causing pressure spikes and water hammer. The VFD ensures that whether one faucet is running or three showers are on, the pressure remains perfectly constant.

The following table provides a clear comparison of solutions for common scenarios found across Montreal, based on a recent analysis of domestic water systems.

Montreal Pressure Solutions Comparison Matrix

Scenario	West Island (40 PSI)	NDG (Fluctuating)	Equipment Cost	Energy Use
Constant Pressure Booster	Ideal solution	Good with VFD	$3,000-5,000	Moderate
Pressure Tank Only	Insufficient	Excellent buffer	$1,500-2,500	Minimal
VFD Booster + Tank Combo	Premium solution	Optimal performance	$5,000-8,000	Low (30% savings)
Standard Single-Speed Pump	Basic solution	Poor (short-cycling)	$2,000-3,000	High

For the ultimate in performance and system longevity, a hybrid system combining a VFD booster pump with a pressure tank is the gold standard. The pump provides the consistent high pressure needed for luxury fixtures, while the tank handles small, instantaneous demands, reducing the number of times the pump needs to cycle on. This not only provides the smoothest possible pressure but also extends the life of the pump motor and saves energy.

How to Zone High-Rise Plumbing to Balance Pressure on Upper Floors?

In a low-rise custom home, pressure is a challenge of supply. In a high-rise penthouse, it becomes a complex problem of physics and control. Water is heavy, and for every 10 feet of vertical rise, the pressure in a pipe decreases by approximately 4.33 PSI (static loss). Conversely, for every 10 feet of drop, pressure *increases* by the same amount (static gain). In a 40-story building, the static pressure difference between the ground floor and the penthouse can be over 170 PSI. A fixture on a lower floor would be destroyed by this pressure, while a fixture in the penthouse would receive a mere trickle without intervention.

The solution is pressure zoning. The building’s plumbing system is divided into vertical zones, typically every 8 to 10 floors. At the bottom of each zone, a Pressure Reducing Valve (PRV) station is installed. This device takes the high-pressure water from the main building riser and throttles it down to a safe and usable pressure, typically 60-80 PSI, for that specific zone. This prevents over-pressurization of fixtures on lower floors.

In high-rise buildings, we must calculate that static gain at the lower level of each zone will not exceed 80 PSI. Eight floors at 10 feet floor-to-floor equals 34.64 PSI gain.

– PHCP Pros Engineering Guidelines, Designing Domestic Water Systems for High-Rises

For the upper floors, and especially the penthouse, the problem is reversed. A dedicated booster pump system is required to push water up to the required height and maintain adequate pressure. For a true luxury penthouse, the best practice is to isolate its plumbing system entirely from the building’s fluctuations.

How to Guarantee Consistent Hot Water in a Penthouse Suite?

For a penthouse client, the ultimate luxury is not just high pressure, but limitless, instantaneous hot water at a precise temperature. Achieving this in a high-rise setting, far from the central mechanical plant, requires a sophisticated, multi-layered approach. Relying solely on the building’s central hot water supply is a recipe for long waits, temperature fluctuations, and unhappy clients. A dedicated, in-suite system is essential.

The most robust strategy is a three-tiered system. First, use the building’s central hot water supply as a pre-heated feed. This incoming water might be 120°F instead of 40°F, dramatically reducing the energy needed by the in-suite heater. Second, install a dedicated point-of-use heater within the penthouse mechanical room—either a high-capacity tank or an appropriately sized tankless unit. This becomes the primary heat source, ensuring a dedicated and ample supply.

The final and most critical layer is the recirculation system. A primary recirculation loop should run from the heater to the entrance of the penthouse’s main bathroom groups. This keeps hot water constantly close. From there, secondary, “smart” recirculation loops with small, on-demand pumps can serve individual bathrooms or fixtures. These pumps can be activated by a motion sensor, a wall button, or a smart home command, delivering hot water in seconds without the energy waste of a constantly running loop. Modern plumbing trends confirm this approach, with data showing a 23% increase in smart shower system adoption in 2024, systems which rely on this type of responsive delivery.

To ensure perfect temperature, the system should incorporate smart mixing valves like the Moen U or Kohler DTV+, which allow for digital, thermostatic control to a fraction of a degree. This entire network must be carefully balanced using thermal balancing valves to prevent any one loop from “stealing” all the hot water flow. Finally, integrate leak detectors with automatic shutoff valves on all water heaters and key connections to provide a final layer of protection and peace of mind.

Designing a plumbing system for a custom luxury home in Montreal is an engineering discipline. By moving beyond simple code compliance and embracing a holistic approach that accounts for hydraulic load, climate, acoustics, and pressure management, you ensure the system not only works but delivers a flawless and lasting luxury experience. For architects and builders, partnering with a plumbing designer who understands these principles is the first and most critical step in the project.
